Dimensional Inspection Lab

Dimensional Inspection Laboratory Services

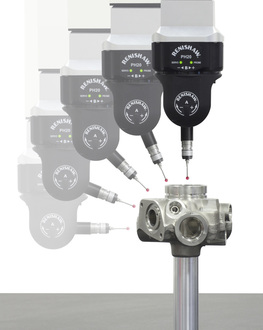

Our dimensional inspection laboratory is clean and organized. We can provide Gage & Check Fixture Calibrations, as well as Part Inspection and Reverse Engineering Services. Our Inspection Laboratory Equipment features State of the Art Renishaw Digital Universal CMM Controllers and Probing Systems including Vision Capability, the SP25 Analog Continuous Contact Scanning, and Non-Contact Laser Scanning inspection to CAD and Digitizing. Being a long time Renishaw Accredited UCC Systems Retrofit Partner, ours was the first commercial Laboratory to make use of the new ground breaking Renishaw PH20 5 Axis Continuous Motion Probing System. Utilizing the latest technology, multiple software packages, and working multiple flexible shifts, helps to streamline our process. This speeds up turn-around time and helps keep outsourcing costs lower for our customers, all while maintaining the accuracy, precision, and repeatability you demand and expect. We can assist when the need arises for Capability Studies, First Article Inspections, Gage R&R's, PPAP's, or if your workload unexpectedly fluctuates and the demand simply surpasses your Inspection Departments capabilities. We can also ease your company's burden in the event that your CMM experiences an unexpected break-down. Whether you need dimensional inspection services for a single prototype or 1000 production samples, please give us a call to discuss your next project. We are here to help!

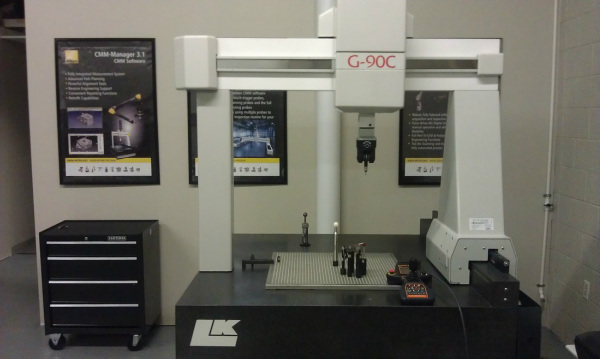

LK Metrology G-90C 876 with Renishaw UCC T5, SPA3, and 5 Axis PH20 System.

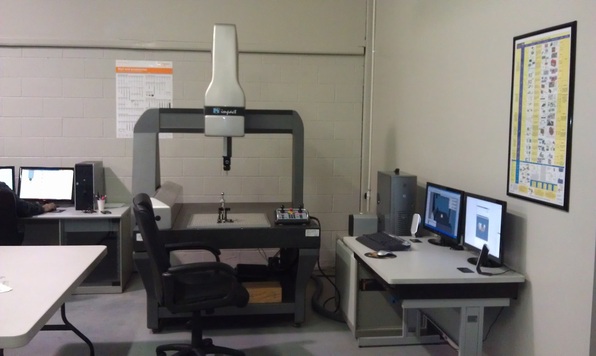

IMS Impact II Multi-Sensor CMM with Renishaw PH10T, TP20 or TP200, SCR200 Tool Change Rack, IMS VIP Vision Probe.

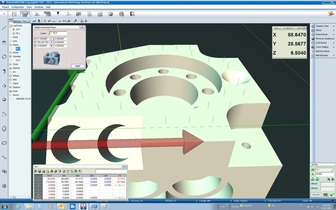

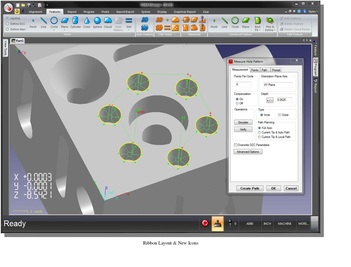

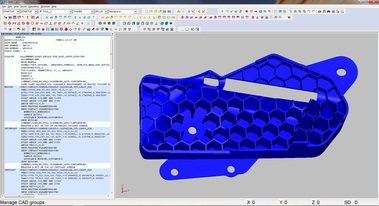

The IMS Impact II utilizes technology from International Metrology Systems, Ltd. UK. This includes Virtual DMIS Mesurement Software, 32 bit OnMotion High Speed Adaptive Surface and Curve Scanning for tactile measurments, and Virtual Vision+ and IMS's own VIP Vision Inspection Probe for non-contact Vision Measurement.

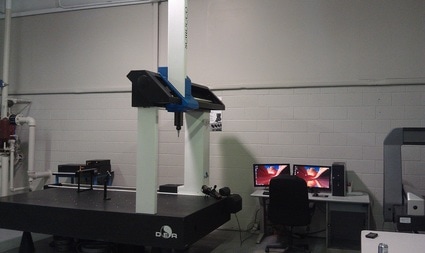

DEA/Hexagon Metrology Scirocco 13-20-10 Multi-Sensor DCC CMM with Renishaw UCCS3 Control, SPA3 Servo Amp, PH10MQ, ACR1 Probe Change Rack System, SP25M Scanning Probe, SP600M Scanning Probe, TP200, and TP20 Touch Trigger Probes.

Largest Measuring Volume: Metric 1300mm X 2000mm X 1000mm
Inch: 52" X 80" X 40"
CMM Maximum Part Weight Capacity: 8800 Pounds

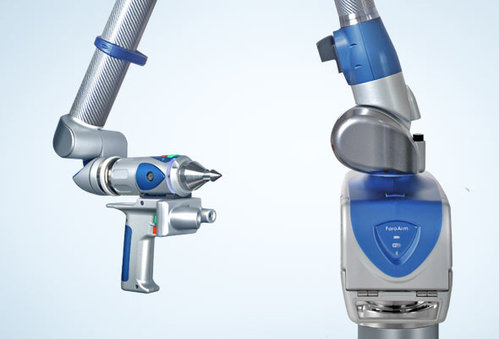

Faro EDGE ScanArm V5 LASER Scanner System

River City Metrology is available to provide in-house or on-site Inspection Service and Reverse Engineering by utilizing our 2014 Faro EDGE ScanArm with V5 LASER Scanner for non-contact measurement.
